Description

Special linear temperature sensor for vehicle and lithium battery is a two-core high performance fire detector for vehicle, it can detect temperature along the entire length of the temperature sensing wire, is characterized by strong adaptability and high cost performance.

It is specially designed for fire temperature detection in vehicle engine compartment, battery compartment, passenger compartment, battery pack and other potential fire hazard parts, and will be applied in the above fire-prone areas. It is adapted to the vehicle environment with excellent wear and vibration resistance. All-weather unmanned automatic fire monitoring can be realized by connecting with the control equipment for key parts of vehicle and lithium battery.

Structure

Two types will be provided for choosing.

Terminal Type

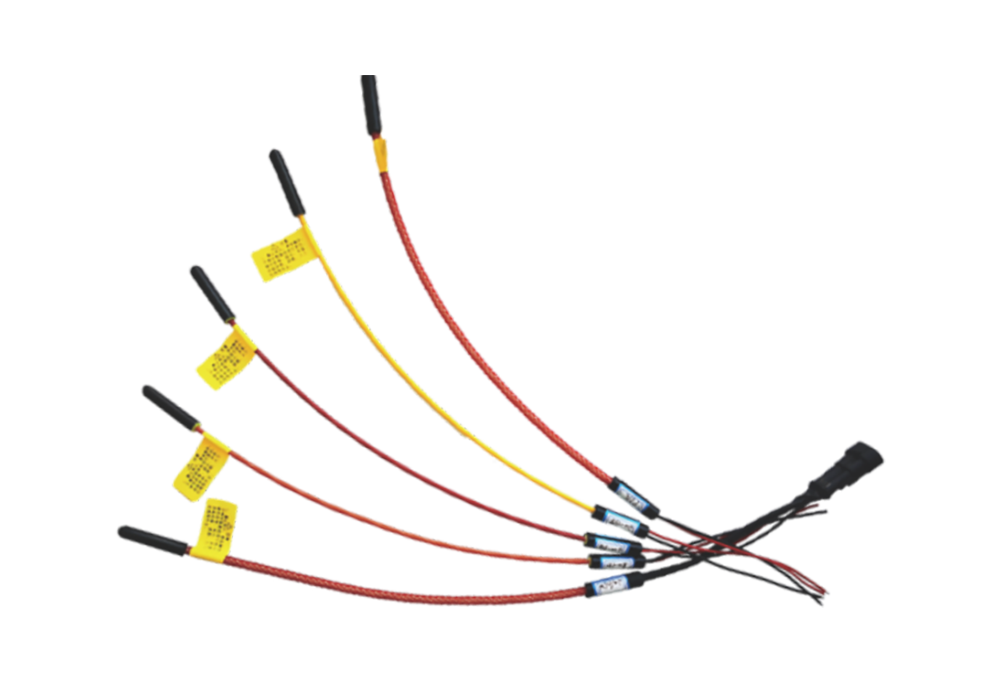

This type is composed of three parts: temperature sensor unit, terminal sealer, wire sealer. The product is shown as below:

Diagram 1 Structure of linear temperature sensor (Terminal Type)

• Temperature sensor unit: linear temperature sensor, the core component of sensor;

• Terminal sealer: seal inside the terminal resistance board which is connected to the temperature sensor unit, waterproof and moisture-proof.

• Wire sealer: connect temperature sensor unit to flexible wire and then seal it, the wire from wire sealer is convenient for connecting to other equipment.

Connection Type

This type is composed of two parts: temperature sensor unit, two wire sealers. The product is shown as below:

Diagram 2  Structure of linear temperature sensor (Connection Type)

Structure of temperature sensor unit:

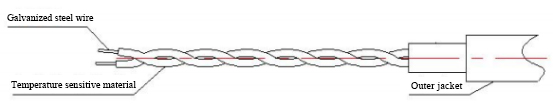

Diagram 3 Structure of temperature sensor unit(Connection Type)

Two metal galvanized steel wires are twisted together after wrapping the NTC temperature sensitive material, the outer jacket is corrosion-proof and wear-proof.

Working Principle

The temperature sensor unit has high resistance characteristics. The insulating layer of the two cores is made of a special fusible NTC material, when the temperature raises and reaches the specific fixed temperature, NTC material will soften and fuse, the contact of conductors will cause a short circuit, this short circuit will trigger the alarm directly.

Features

• High adaptability: can be applied in narrow, harsh environment of vehicle;

• Chemical resistance and abrasion resistance: extrude and woven outer jacket with high-strength, which could meet the needs of vehicle products;

• Well sealed: terminal sealer and wire sealer are sealed by injection molding, waterproof, moisture-proof, resistance to mechanical vibration;

• Easy connection: connect with the flexible wire via wire sealer, convenient for connecting to other equipment;

• Easy to install and maintain;

• Can be installed on the surface of key detection parts, fast response.
