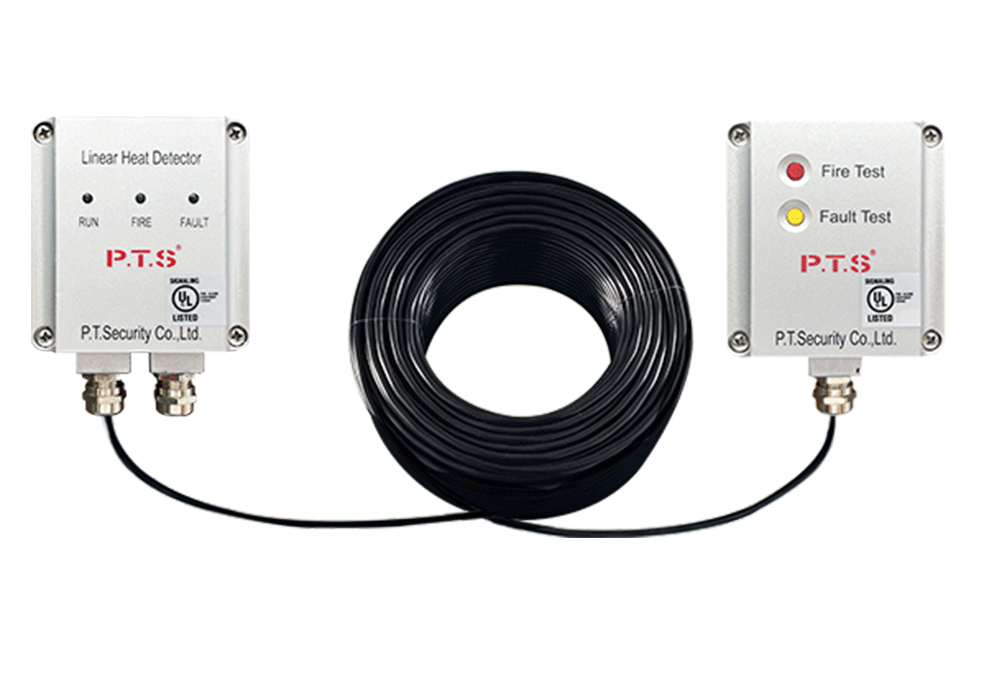

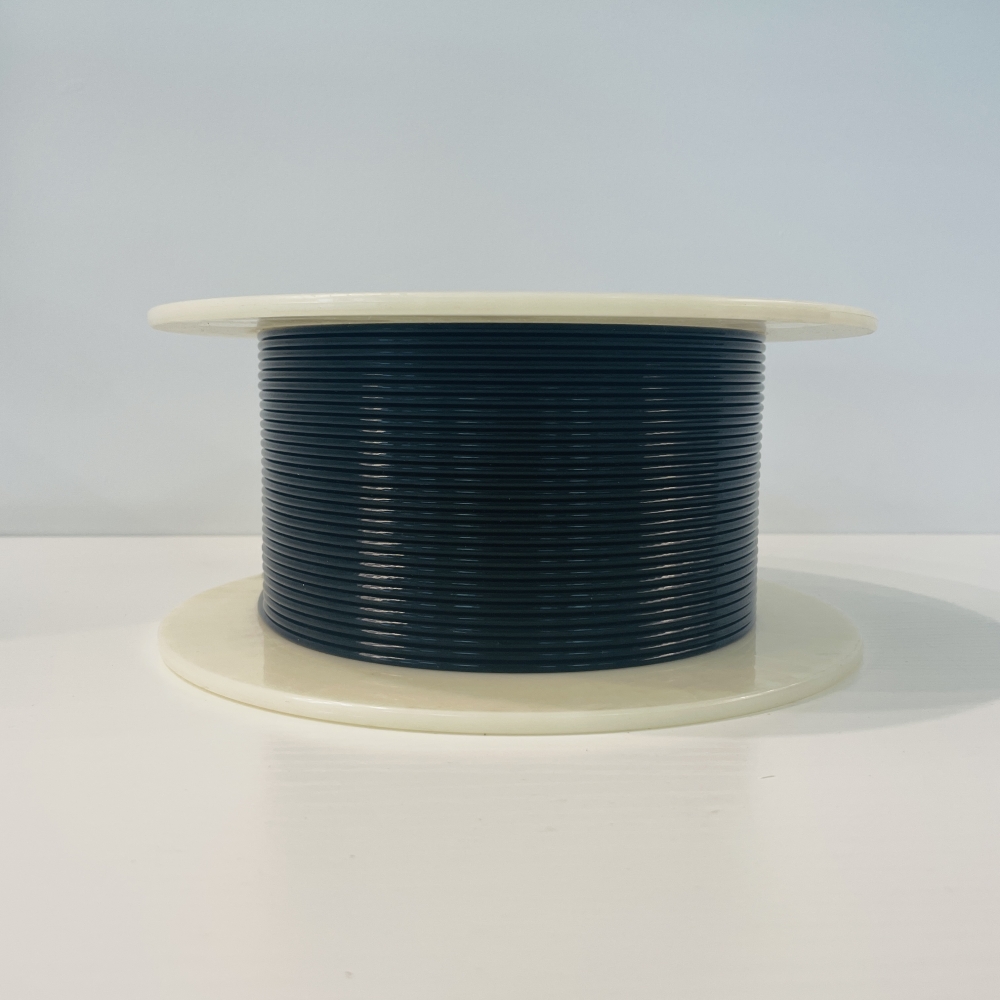

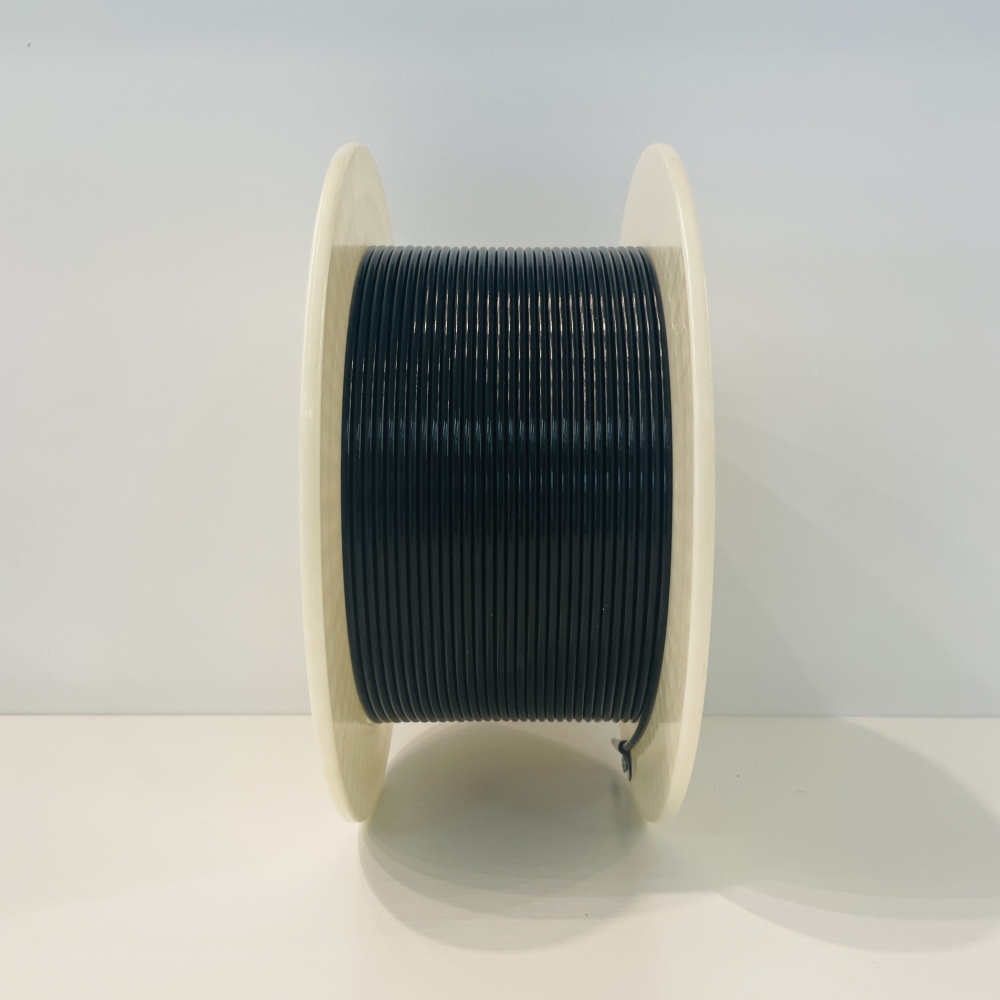

Linear Heat Detector is composed of Linear Heat Cable, Adapter Unit and Termination Unit. Linear heat cable is a temperature sensitive material, which can detect the temperature change at any section or point along its entire installation length.Through the adapter unit, the electrical signal is converted into alarm signal to the fire alarm panel, so as to realize the function of fire detection and warning.
Features and Benefits
1. Industrial safety design
2. Detect heat at any point along its length
3. Electrical interface with low power consumption design
4. Real-time monitoring
5. Working with 24 VDC supply or without 24VDC supply
6. Fast response
7. No alarm temperature compensation required
8. Compatible to any kind fire alarm system
9. Multiple alarm temperature:68℃, 88℃, 105℃, 138℃, 180℃
10. UV and weather resistance, high performance of acid resistant, alkali-resistant, salt spray resistant, it has been strongly recommended for outdoor using even under bad weather conditions.
Automatic Fire Alarm Control System
Specifications

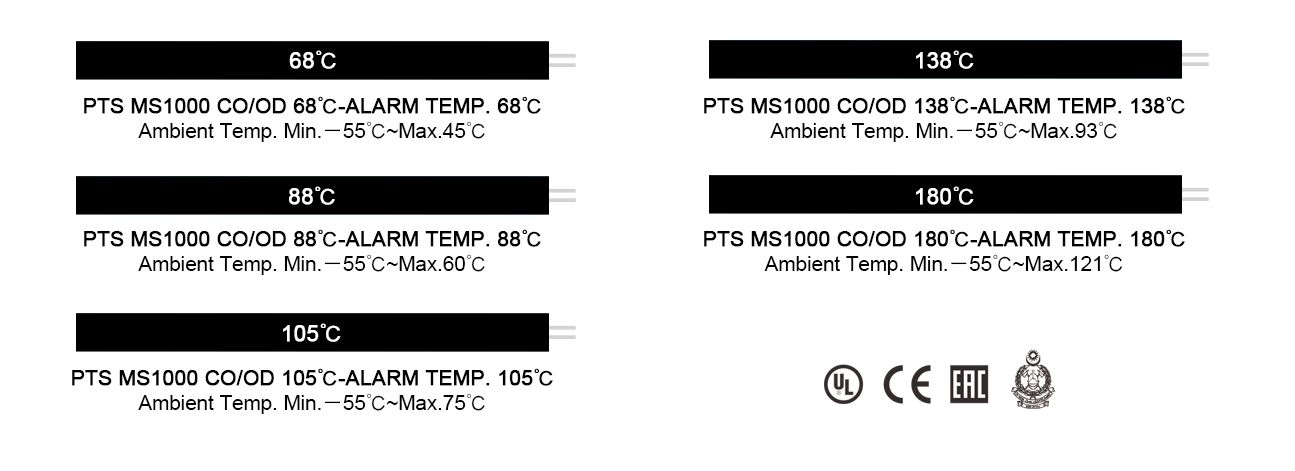

| MS1000 CR/OD 68℃ | MS1000 CR/OD 88℃ | MS1000 CR/OD 105℃ | MS1000 CR/OD 138℃ | MS1000 CR/OD 180℃ |
Diameter of core conductor | 0.92mm | 0.92mm | 0.92mm | 0.92mm | 0.92mm |
Alarming Temperature | 68℃ | 88℃ | 105℃ | 138℃ | 180℃ |
Storage Temperature | －20℃~50℃ | －20℃~50℃ | －20℃~50℃ | －20℃~50℃ | －20℃~50℃ |
Ambient Temperature(Min) | －55℃ | －55℃ | －55℃ | －55℃ | －55℃ |
Ambient Temperature (Max) | 45℃ | 60℃ | 75℃ | 93℃ | 121℃ |
Acceptable deviation | ±3℃ | ±5℃ | ±5℃ | ±5℃ | ±8℃ |
Responding Time(s) | 10 (Max) | 10 (Max) | 15 (Max) | 20 (Max) | 20 (Max) |
Working Principle

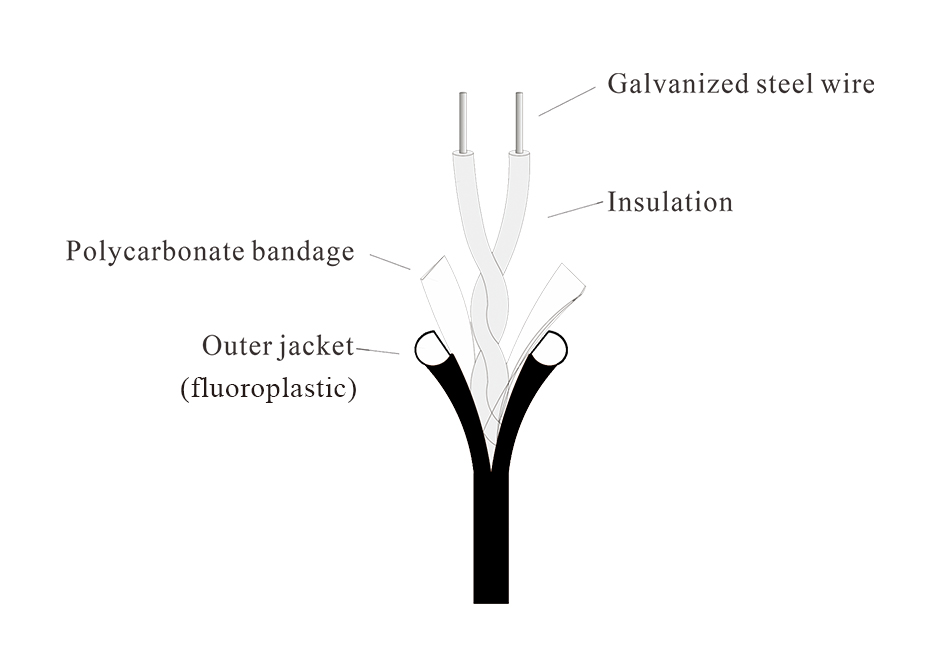

Compared with other kinds of detectors, MS1000 Digital Linear Heat Detector functions on a very-early detection and alarm for the protected context. The detector can be known as an intelligent “switch” type detector. When the temperature meets or exceeds the specific fixed temperature, the NTC heat sensitive material which covers the two conductors softens and fuses, the contact of conductors will cause a short circuit, this short circuit will trigger the alarm directly. The detector has a continuous sensitivity. The sensitivity of linear heat detector will not be influenced by the environment temperature changing and the length of detection cable using. It does not need to be adjusted and temperature compensation. The detector can transfer both alarm and fault signals to fire alarm panel through its control unit normally with DC24V.
